Description

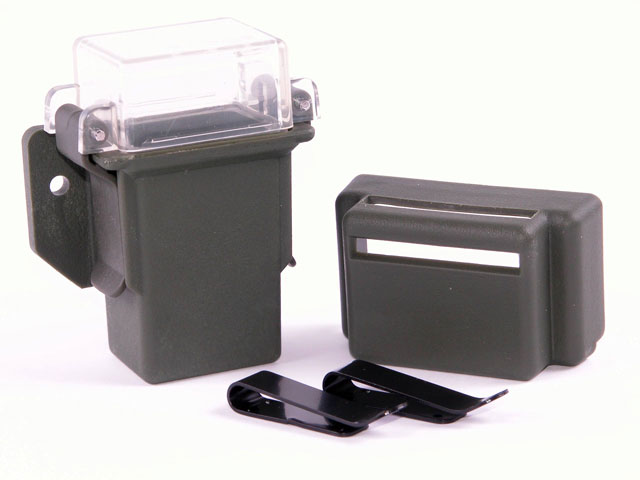

The Poseidon™ Clip Mount Green (902801G) provides both a watertight and durable mounting system for the complete Phoenix and Pegasus series of Infrared beacons. All deployed versions of Phoenix and Pegasus can use the Poseidon Clip Mount.
The mounting clip can be attached to PALS webbing, belts, or a uniform by using the supplied locking spring clips or can be secured with bolts to rigid surfaces such as helmets and vehicles.
The beacon is attached to the battery and placed within the Poseidon Clip Mount. The clear top cover is placed over the beacon and secured using the dual locking flanges forming a watertight seal . The clear top cover allows for 360 degree visibility of the beacon. An included shield cap can be snapped in place over the top cover to focus the signal emission to front and top only, giving the operator the choice of directing the signal emission.
Features
-
-
- Weight :51 Grams |1.8 ounces
- Size: 70 x 53mm | 2.75” x 2.1”
- Capacity: One Phoenix or Pegasus Series Beacon and Battery
- Watertight: Tested to 46 Meters | 150 Feet
- Viewing angle: 360 degree horizontal / 240 degree vertical without the shield cap fitted. The shield cap substantially reduces the viewing angle and limits signal transmission to top and front only
- Included Accessories: Poseidon Clip Mount, Directional Cover, Two locking spring clips , Zip Tie (not pictured)
Optional Accessories Poseidon Clip Mount Black (902801B), Poseidon Clip Mount Green (902801G), Poseidon Clip Mount Sand NSN: 5340-01-598-4800 (902801S) (not pictured)
-
