CIRLS™ (LITS™) Visible Signal Beacons

Category:

Description

CIRLS™ is an extremely rugged beacon system that has been engineered to meet the needs of Drop Zone (DZ) and Emergency Airfield (EAF) marking requirements by providing a dependable lightweight zone marking solution. The CIRLS system is currently utilized by United States Army and Air Force as well as NATO for high altitude DZ marking.

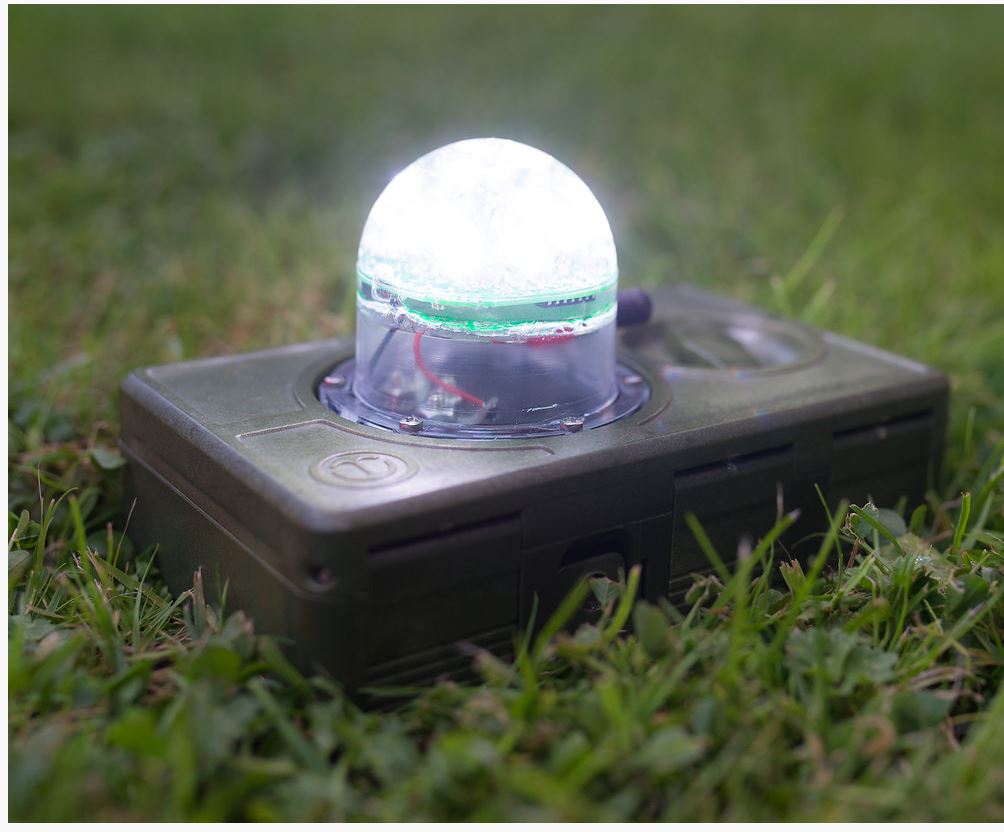

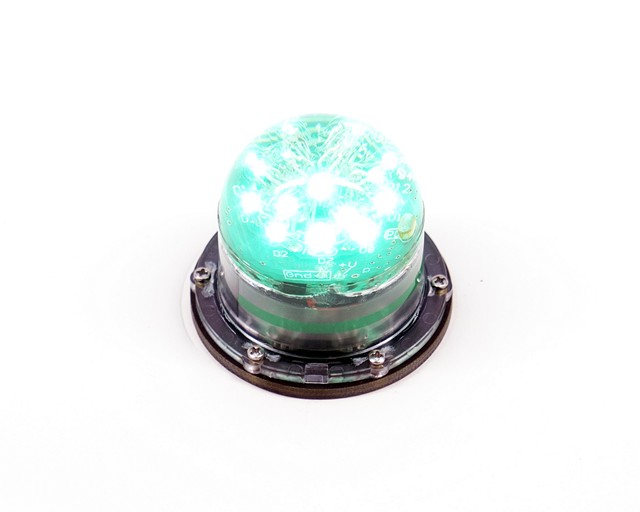

Each CIRLS™ (LITS™) Light Head incorporates an 18-LED array in a domed head filled with a proprietary resin that enhances the LED’s light dispersion while sealing the electronic components from the environment.

The CIRLS Light Head can easily be switched ON or OFF via a single switch. The CIRLS Light Head is offered in either Constant ON or Flashing modes and in a variety of light colors, including Near IR and SWIR.

The CIRLS light head attaches to the MIL-STD BA-5598/U lithium pack battery or our CIRLS™ 123A / AA Battery Box (NSN: 6130-01-623-4297) (905117).

Features

      • Weight: 2.6 ounces | 74 Grams
      • Size: 2.1″ x 2.25″ | 54mm x 57mm
      • Flash repeat cycle: Constant ON or Flashing (0.8 per second)
      • Battery: MIL-STD BA-5598/U, CIRLS™ 123A / AA Battery Box (NSN: 6130-01-623-4297) (905117), or our legacy CIRLS™ Battery Box (905111PP3)
      • Configuration: 18 Light Emitting Diodes (LED)
      • Coverage: 240 degrees x 360 degrees
      • Switching: Push Button
      • Wavelength Options:

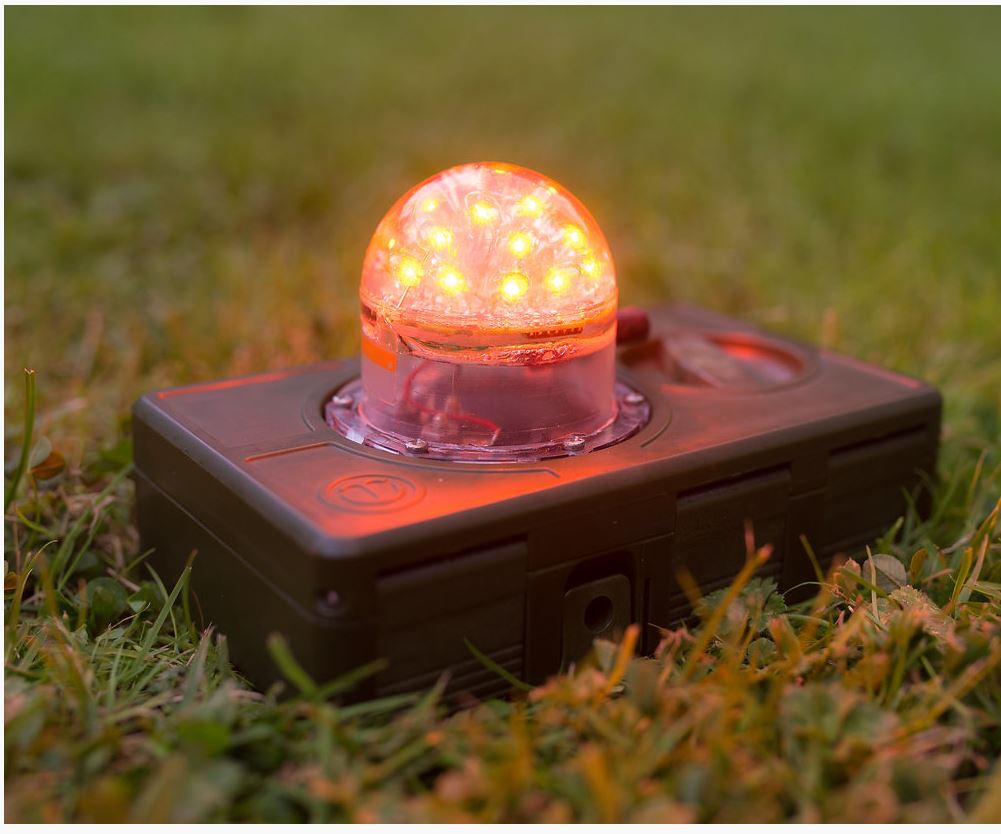

        • CIRLS Flashing Amber (NSN: 6210-01-623-4299) (903518LVA)
        • CIRLS Constant On Amber (NSN: 6210-01-623-4301) (903519LVA)

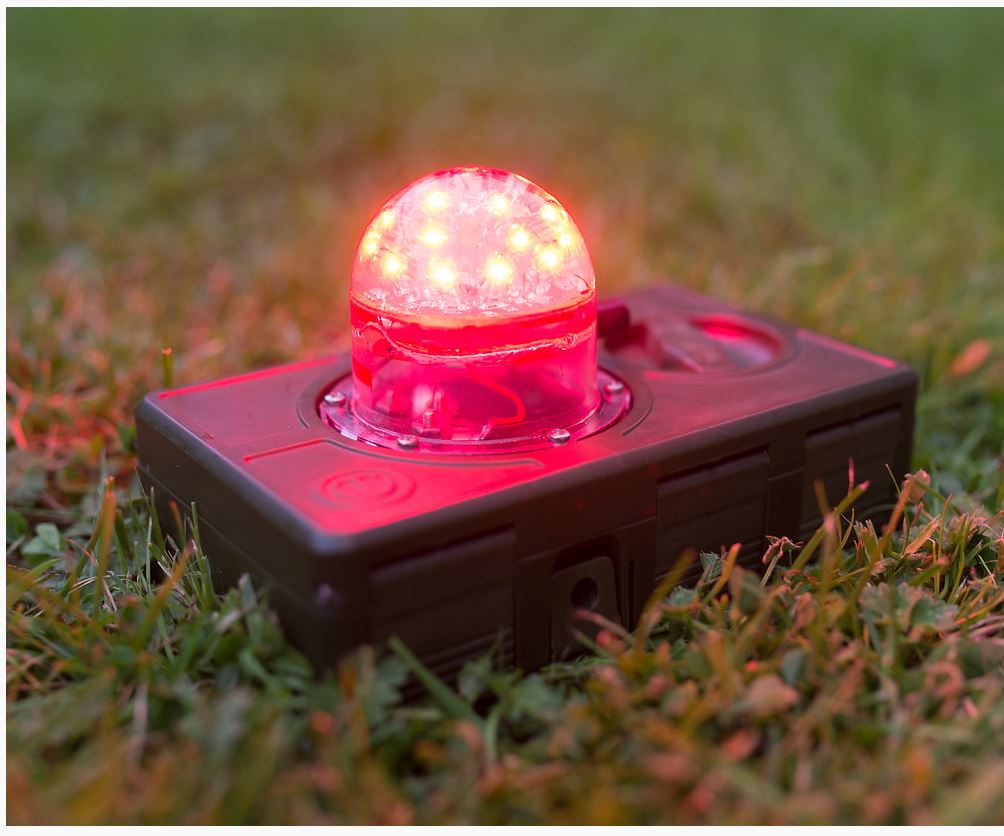

        • CIRLS Flashing Red (NSN: 6210-01-623-4312) (903518LVR)
        • CIRLS Constant On Red (NSN: 6210-01-623-4300) (903519LVB)

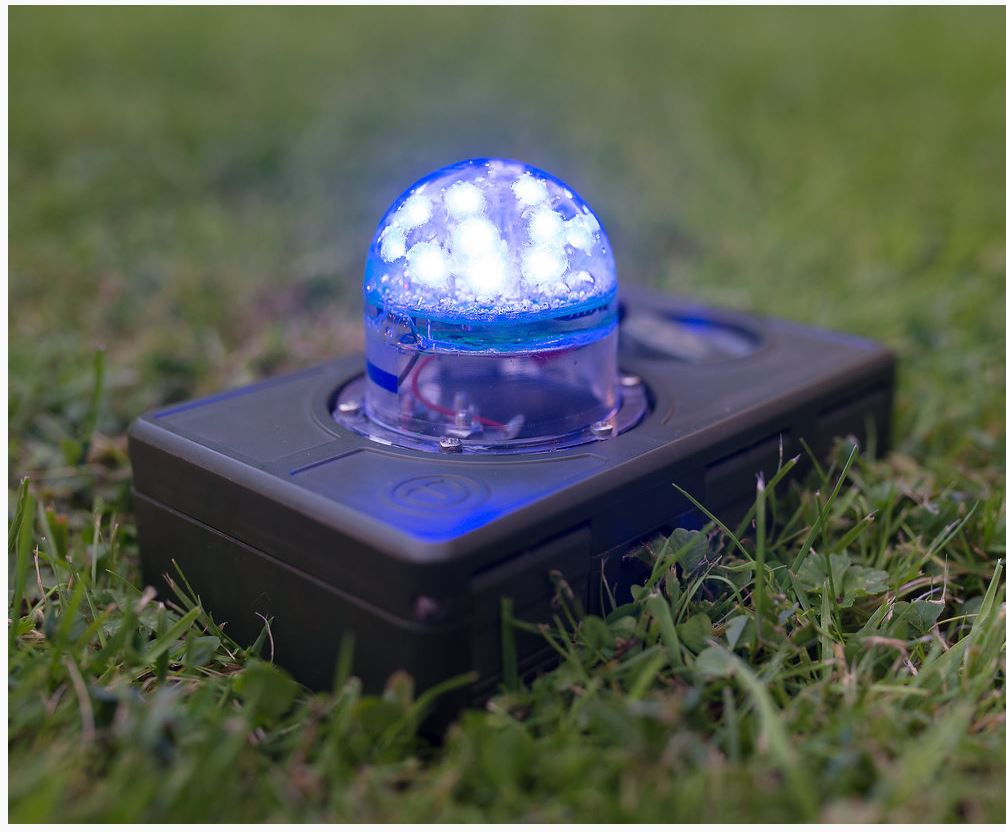

        • CIRLS Flashing Blue (NSN: 6210-01-623-4307) (903520HVB)
        • CIRLS Constant On Blue (NSN: 6210-01-623-4311) (903521HVB)

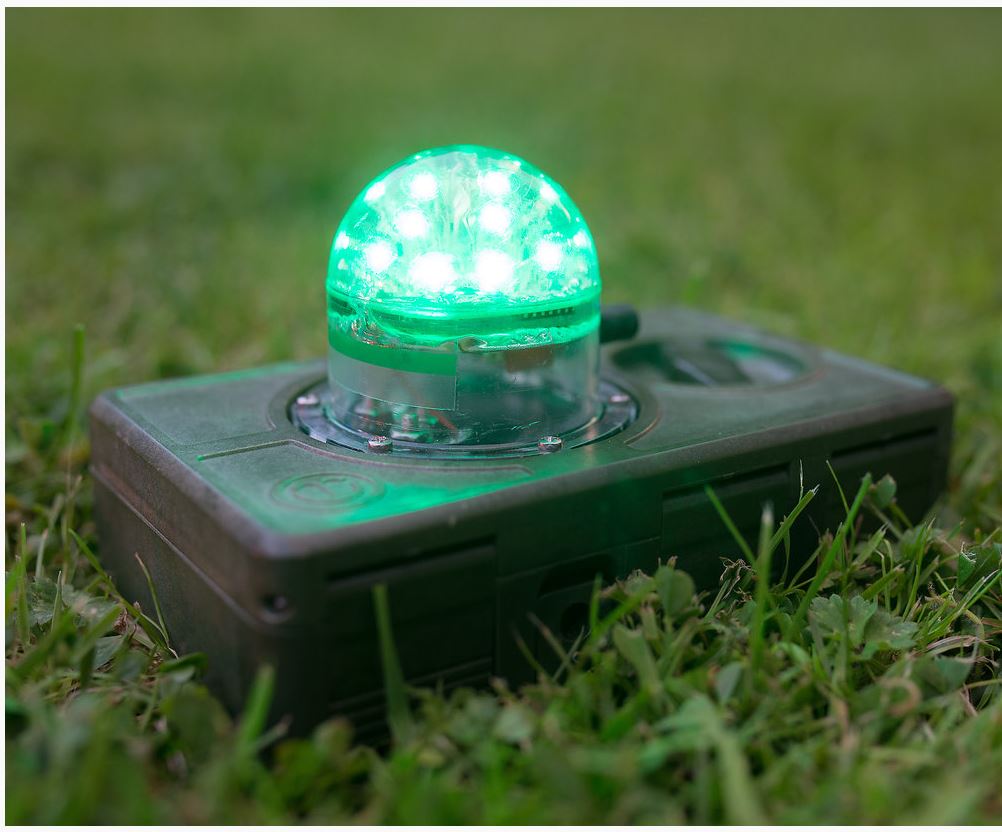

        • CIRLS Flashing Green (NSN: 6210-01-623-4308) (903520HVG)
        • CIRLS Constant On Green (NSN: 6210-01-623-4295) (903521HVG)
        • CIRLS Flashing White (NSN: 6210-01-623-4304) (903520HVW)
        • CIRLS Constant On White (NSN: 6210-01-623-4309) (903521HVW)
