CIRLS™ (LITS™ ) Near Infrared

Description

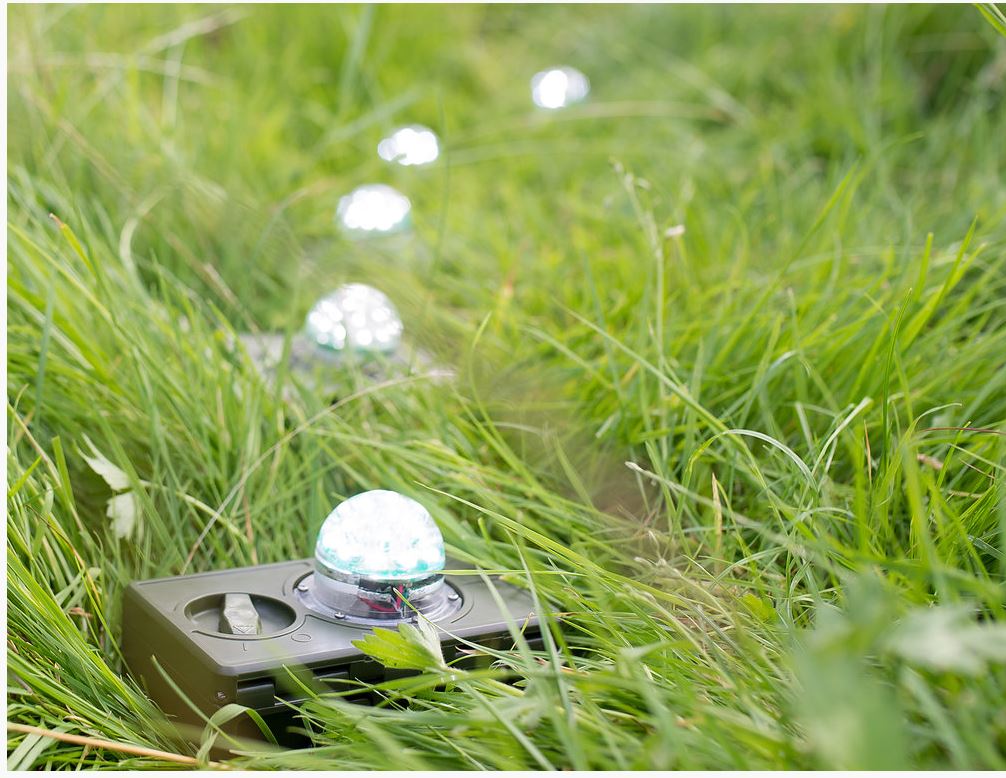

CIRLS™ is an extremely rugged beacon system that has been engineered to meet the needs of Drop Zone (DZ) and Emergency Airfield (EAF) marking requirements by providing a dependable lightweight zone marking solution. The CIRLS system is currently utilized by United States Army and Air Force as well as NATO for high altitude DZ marking.

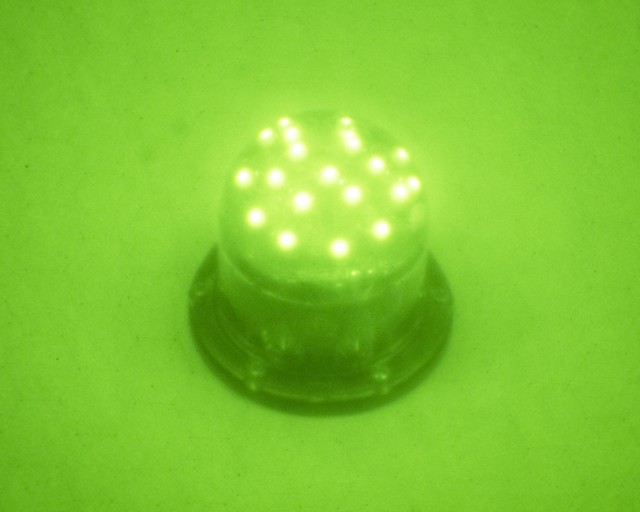

Each CIRLS™ (LITS™) Near Infrared (880nm) Light Head incorporates an 18-LED array in a domed head filled with a proprietary resin that enhances the LED’s light dispersion while sealing the electronic components from the environment. Near IR can be seen with Night Vision.

The CIRLS Light Head can easily be switched ON or OFF via a single switch. The CIRLS Near Infrared Light Head is offered in either Constant ON (NSN: 6210-01-623-4298) or Flashing modes.

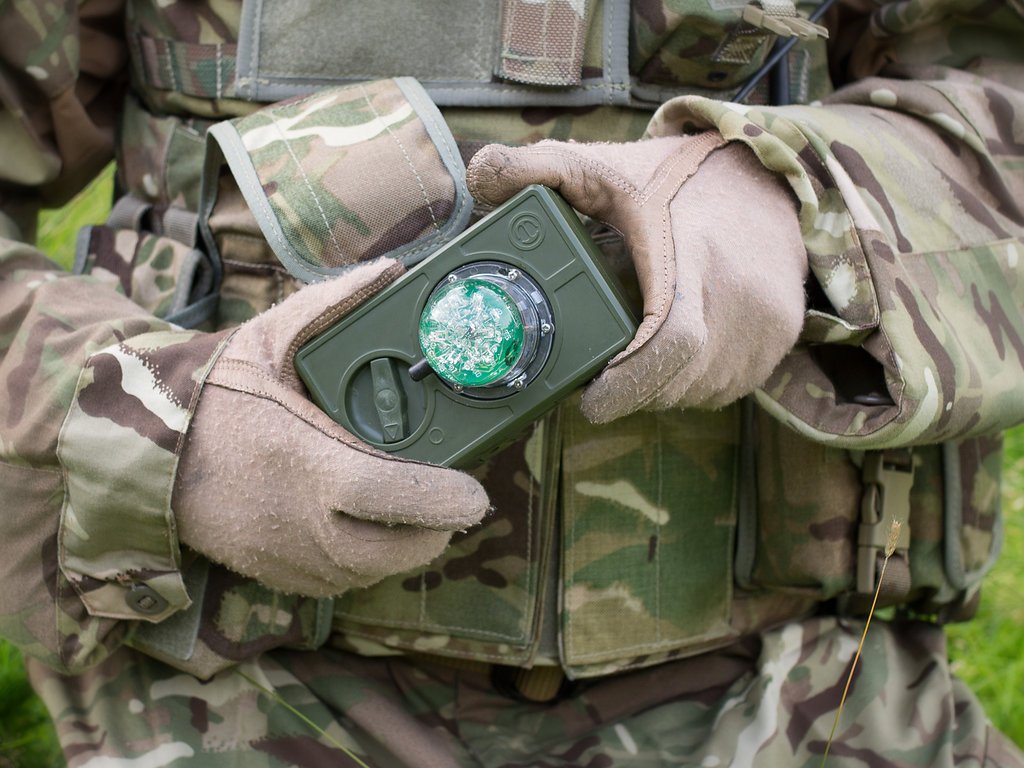

The CIRLS light head attaches to the MIL-STD BA-5598/U lithium pack battery or our CIRLS™ 123A / AA Battery Box (NSN: 6130-01-623-4297) (905117).

Features

• • • Weight: 2.6 ounces | 74 Grams
    • Size: 2.1″ x 2.25″ | 54mm x 57mm
    • Flash repeat cycle: Constant ON or Flashing (0.8 per second)
    • Battery: MIL-STD BA-5598/U, CIRLS™ 123A / AA Battery Box (NSN: 6130-01-623-4297) (905117), or our legacy CIRLS™ Battery Box (905111PP3)
    • Configuration: 18 Light Emitting Diodes (LED)
    • Coverage: 240 degrees x 360 degrees
    • Switching: Push Button
    • Wavelength Options:
      • CIRLS Flashing IR (903522IR)
      • CIRLS Constant On IR (903523IR)
