Aurora™ Cirls and Portable Thermal Beacon Radio Receiver

Up to 99 AURORA™ Radio Receivers can be paired with an AURORA™ Radio Controller to form an Aurora™ radio control system.

The Aurora™ 2.4GHz digital radio control system enables remote control of up to 99 CIRLS and /or Portable Thermal Beacons. During operation Aurora establishes a multiway encrypted communication network allowing receivers to forward control signals from receiver to receiver permitting a maximum system range of 3,500 meters.

Ten distinct radio channels allow for multiple covert and visible beacon systems to be deployed in close proximity.

Powered by either CR 123A or AA Batteries Aurora is compatible with all new or legacy CIRLS Lights, Battery Boxes, CIRLS DZ systems, or Portable Thermal Beacons.

Features

• • • Frequency 2.4GHz Digital, Conforms to IEEE 802.15.4 RF
    • Point-to-Point Range 1600’ | 500m (Line-of-sight, receiver-to-receiver )
    • System Range 1 – 2.2 miles | 1.6 – 3.5Km by use of Control Message Forwarding
    • Acceptance World-Wide including FCC, CE, ISM, etc.

    RADIO CONTROLLER

    • Size 3.17” x 5.20” x 1.46” | 80mm x 132mm x 37mm
    • Weight 10oz | 280g (Without Batteries)
    • Batteries | Power Six (6) AA or Three (3) CR123A Batteries
    • Operating Time 45+ Hours
    • Environment Weather sealed

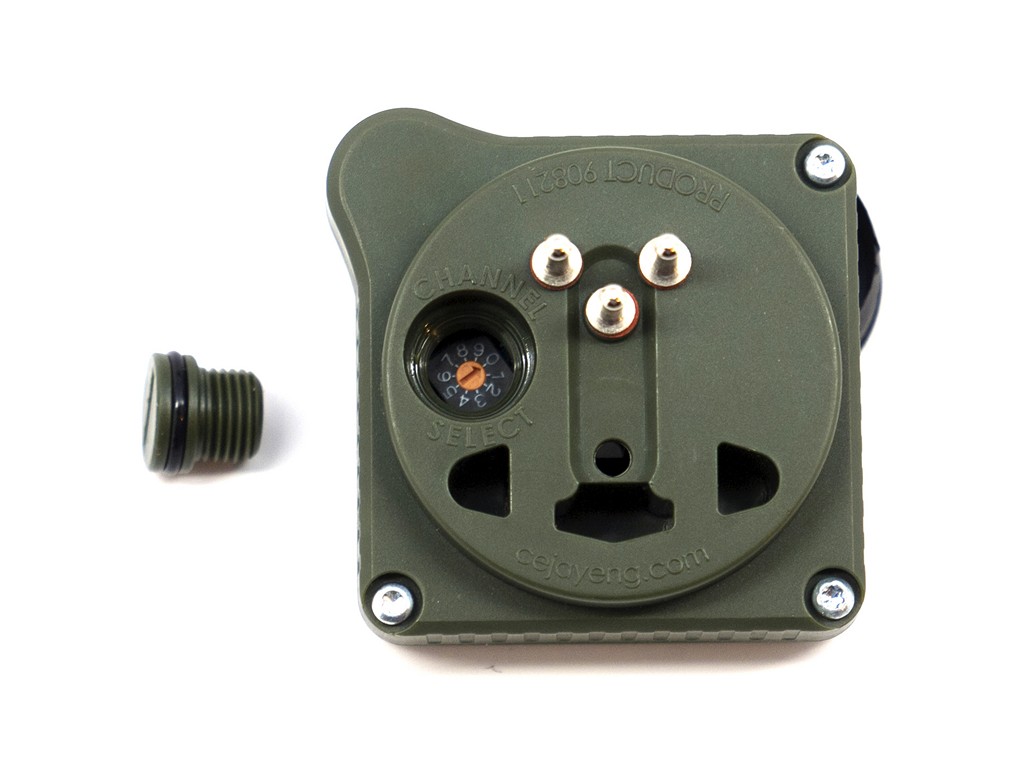

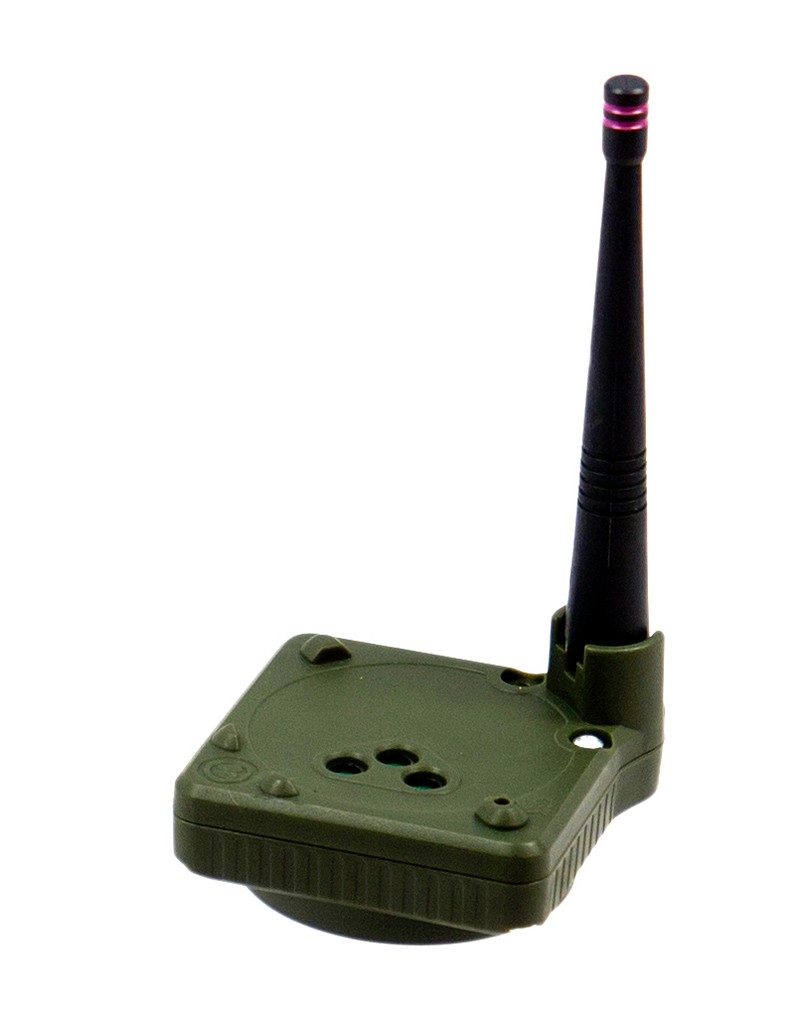

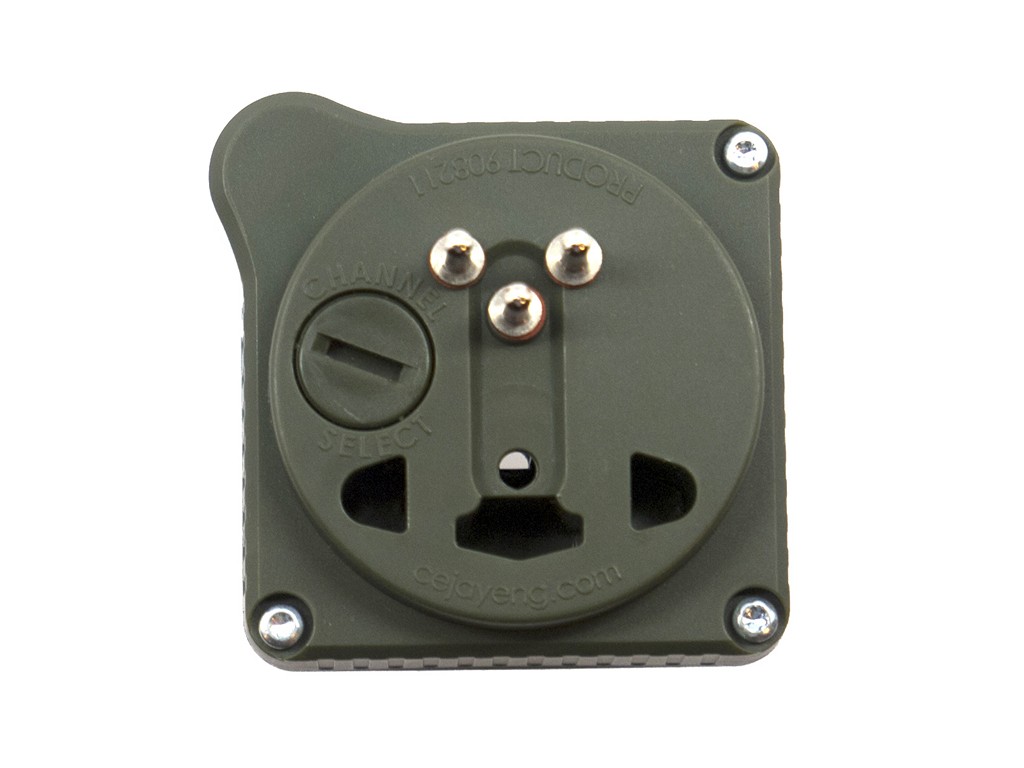

    RADIO RECEIVER

    • Size 2.52” x 2.52” x .94” | 65mm x 65mm x 24mm
    • Weight 2.5oz | 70g
    • Batteries | Power CIRLS™ Battery Box or CIRLS™ 123A / AA Battery Box
    • Operating Time 45 Hours Standby | 4 Hours with CIRLS Signal Beacon ON
    • Environment Weather sealed
